Lecture 07: Matrix Algebra

Matrix Algebra in R

Author
Affiliation

Jihong Zhang, Ph.D.

Educational Statistics and Research Methods (ESRM) Program

University of Arkansas

Published

October 7, 2024

Today’s Class

  • Matrix Algebra
  • Multivariate Normal Distribution
  • Multivariate Linear Analysis

Advanced Multivariate Analysis

  1. See the online syllabus here

  2. Recommended for ESRM students and others interested in applied statistics in the social sciences.

A Brief Introduction to Matrices

Today’s Example Data

  • Imagine that I collected SAT test scores for both the Math (SATM) and Verbal (SATV) sections for 1,000 students.
library(ESRM64503)
library(kableExtra)
show_table(head(dataSAT))
id SATV SATM
1 520 580
2 520 550
3 460 440
4 560 530
5 430 440
6 490 530

Last several rows of the data:

show_table(tail(dataSAT))
id SATV SATM
995 995 570 560
996 996 480 420
997 997 430 330
998 998 560 540
999 999 470 410
1000 1000 540 660

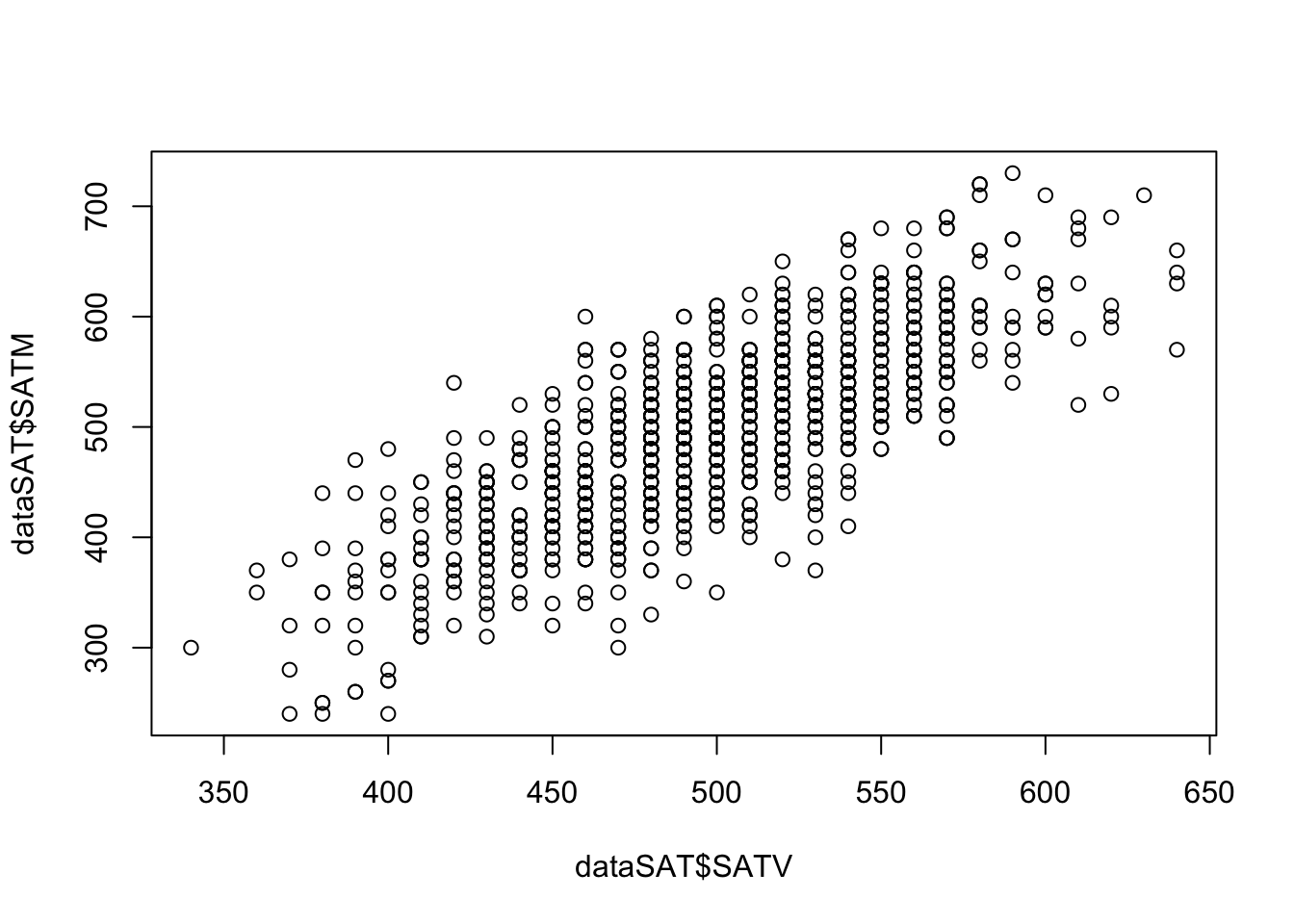

Relationship between SATV and SATM:

plot(dataSAT$SATV, dataSAT$SATM)

Background

  • Matrix operations are fundamental to all modern statistical software.

  • When you installed R, it also came with required matrix algorithm libraries. Two popular ones are BLAS and LAPACK.

    • Other optimized libraries include OpenBLAS, AtlasBLAS, GotoBLAS, and Intel MKL.

      {bash} Matrix products: default LAPACK: /Library/Frameworks/R.framework/Versions/4.2-arm64/Resources/lib/libRlapack.dylib

  • From the LAPACK website,

    LAPACK is written in Fortran 90 and provides routines for solving systems of simultaneous linear equations, least-squares solutions of linear systems of equations, eigenvalue problems, and singular value problems.

    LAPACK routines are written so that as much as possible of the computation is performed by calls to the Basic Linear Algebra Subprograms (BLAS).

Matrix Elements

  • A matrix (denoted with a capital X) is composed of a set of elements.

    • Each element is denoted by its position in the matrix (row and column).
X = matrix(c(
  1, 2,
  3, 4,
  5, 6
), nrow = 3, byrow = TRUE)
X
     [,1] [,2]
[1,]    1    2
[2,]    3    4
[3,]    5    6
dim(X) # Number of rows and columns
[1] 3 2
  • In R, use matrix[rowIndex, columnIndex] to extract the element at rowIndex and columnIndex.
X[2, 1]
X[3] # No comma in the bracket will output the element in column-wise order
X[2, ] # 2nd row vector
X[, 1] # 1st column vector
[1] 3
[1] 5
[1] 3 4
[1] 1 3 5

  • In statistics, we use x_{ij} to represent the element in the ith row and jth column. For example, consider a matrix \mathbf{X} with 1,000 rows and 2 columns:

    • The first subscript is the index of the rows

    • The second subscript is the index of the columns

\mathbf{X} = \begin{bmatrix} x_{11} & x_{12}\\ x_{21} & x_{22}\\ \dots & \dots \\ x_{1000, 1} & x_{1000,2} \end{bmatrix}

Scalars

  • A scalar is just a single number

  • The name scalar is important: the number “scales” a vector—it can make a vector longer or shorter.

  • Scalars are typically written without boldface:

    x_{11} = 520

  • Each element of a matrix is a scalar.

  • Matrices can be multiplied by a scalar so that each element is multiplied by that scalar.

    3 * X
         [,1] [,2]
[1,]    3    6
[2,]    9   12
[3,]   15   18

Matrix Transpose

  • The transpose of a matrix is formed by switching the indices of the rows and columns.

\mathbf{X} = \begin{bmatrix} 520 & 580\\ 520 & 550\\ \vdots & \vdots\\ 540 & 660\\ \end{bmatrix}

\mathbf{X}^T = \begin{bmatrix} 520 & 520 & \cdots & 540\\ 580 & 550 & \cdots & 660 \end{bmatrix}

  • An element x_{ij} in the original matrix \mathbf{X} becomes x_{ji} in the transposed matrix \mathbf{X}^T.

  • Transposes are used to align matrices for operations where the sizes of matrices matter (such as matrix multiplication)

    t(X)
         [,1] [,2] [,3]
[1,]    1    3    5
[2,]    2    4    6

Types of Matrices

  • Square Matrix: A square matrix has the same number of rows and columns.

    • Correlation / covariance matrices are square matrices

  • Diagonal Matrix: A diagonal matrix is a square matrix with nonzero diagonal elements (x_{ij}\neq 0 for i=j) and zeros on the off-diagonal elements (x_{ij} = 0 for i\neq j):

    \mathbf{A} = \begin{bmatrix} 2.758 & 0 & 0 \\ 0 & 1.643 & 0 \\ 0 & 0 & 0.879\\ \end{bmatrix}

    • We will use diagonal matrices to transform correlation matrices into covariance matrices.
    vars = c(2.758, 1.643, 0.879)
diag(vars)
          [,1]  [,2]  [,3]
[1,] 2.758 0.000 0.000
[2,] 0.000 1.643 0.000
[3,] 0.000 0.000 0.879

  • Symmetric Matrix: A symmetric matrix is a square matrix where all elements are reflected across the diagonal (x_{ij} = x_{ji}).

    • Correlation and covariance matrices are symmetric matrices
    • Question: Is a diagonal matrix always symmetric? True

Linear Combinations

  • The addition of a set of vectors (each multiplied by a scalar) is called a linear combination:

\mathbb{y} = a_1x_1 + a_2x_2 + \cdots + a_kx_k = \mathbf{A}^{-1} \mathbf{X}

  • Here, \mathbb{y} is the linear combination

    • For all k vectors, the set of all possible linear combinations is called their span

    • This is typically not emphasized in most analyses—but when working with latent variables it becomes important.

  • In data, linear combinations occur frequently:

    • Linear models (i.e., Regression and ANOVA)

    • Principal components analysis

    • Question: Do generalized linear models contain linear combinations? True; link function + linear predictor.

Inner (Dot/Cross-) Product of Vectors

  • An important concept in vector geometry is the inner product of two vectors.

    • The inner product is also called the dot product

    \mathbf{a} \cdot \mathbf{b} = a_{11}b_{11}+a_{21}b_{21}+\cdots+ a_{N1}b_{N1} = \sum_{i=1}^N{a_{i1}b_{i1}}

x = matrix(c(1, 2), ncol = 1)
y = matrix(c(2, 3), ncol = 1)
x
y
crossprod(x, y) # R function for dot product of x and y
t(x) %*% y # This is formally equivalent to (but usually slightly faster than) the call `t(x) %*% y` (`crossprod`) or `x %*% t(y)` (`tcrossprod`).
     [,1]
[1,]    1
[2,]    2
     [,1]
[1,]    2
[2,]    3
     [,1]
[1,]    8
     [,1]
[1,]    8

Using our example data dataSAT,

crossprod(dataSAT$SATV, dataSAT$SATM) # x and y could be variables in our data
          [,1]
[1,] 251928400
  • In data: the angle between vectors relates to the correlation between variables, and projection relates to regression/ANOVA/linear models.

Combine Two Matrices

Use cbind() to combine by columns and rbind() to combine by rows. Dimensions must be conformable:

  • cbind requires the same number of rows.
  • rbind requires the same number of columns.

Mini Exercise: Dot Product

Compute the dot product of two column vectors and verify it equals the corresponding element of a matrix product.

  1. Define two vectors a = [1, 3, 5]^T and b = [2, 4, 6]^T as 3x1 matrices.

  2. Compute the dot product a ⋅ b in two ways:

  • Using crossprod(a, b)
  • Using t(a) %*% b
  1. Now form matrices A = [a a] (3x2) and B = [b b] (3x2). Compute t(A) %*% B. Which entry of this 2x2 result equals a ⋅ b?

The dot product is a ⋅ b = 1*2 + 3*4 + 5*6 = 44.

Both crossprod(a, b) and t(a) %*% b return 44.

Forming A = [a a] and B = [b b], the product t(A) %*% B is a 2x2 matrix where every entry equals a ⋅ b = 44, because each entry is the dot product between a column of A and a column of B.

Matrix Algebra

Moving from Vectors to Matrices

  • A matrix can be thought of as a collection of vectors.

    • In R, use df$[name] or matrix[, index] to extract a single vector.

  • Matrix algebra defines a set of operations and entities on matrices.

    • I will present a version meant to mirror your previous algebra experiences.

  • Definitions:

    • Identity matrix

    • Zero vector

    • Ones vector

  • Basic Operations:

    • Addition

    • Subtraction

    • Multiplication

    • “Division”

Matrix Addition and Subtraction

  • Matrix addition and subtraction are much like vector addition and subtraction.

  • Rules: Matrices must be the same size (rows and columns).

    • Be careful! R may not produce an error message when adding a matrix and a vector.

      A = matrix(c(1, 2, 3, 4), nrow = 2, byrow = T)
B = c(1, 2)
A
B
A+B
           [,1] [,2]
[1,]    1    2
[2,]    3    4
[1] 1 2
     [,1] [,2]
[1,]    2    3
[2,]    5    6

  • Method: the new matrix is constructed by element-by-element addition/subtraction of the previous matrices.

  • Order: the order of the matrices (pre- and post-) does not matter.

A = matrix(c(1, 2, 3, 4), nrow = 2, byrow = T)
B = matrix(c(5, 6, 7, 8), nrow = 2, byrow = T)
C = matrix(c(3, 6), nrow = 2, byrow = T)
A
     [,1] [,2]
[1,]    1    2
[2,]    3    4
B
     [,1] [,2]
[1,]    5    6
[2,]    7    8
A + B
     [,1] [,2]
[1,]    6    8
[2,]   10   12
A - B
     [,1] [,2]
[1,]   -4   -4
[2,]   -4   -4
A + C
Error in `A + C`:
! non-conformable arrays

Matrix Multiplication

  • The new matrix has the same number of rows as the pre-multiplying matrix and the number of columns as the post-multiplying matrix.

\mathbf{A}_{(r \times c)} \mathbf{B}_{(c\times k)} = \mathbf{C}_{(r\times k)}

  • Rules: The pre-multiplying matrix must have a number of columns equal to the number of rows of the post-multiplying matrix.

  • Method: the elements of the new matrix consist of the inner (dot) products of the row vectors of the pre-multiplying matrix and the column vectors of the post-multiplying matrix.

  • Order: The order of the matrices matters.

  • R: Use the %*% operator or crossprod to perform matrix multiplication.

A = matrix(c(1, 2, 3, 4, 5, 6), nrow = 2, byrow = T)
B = matrix(c(5, 6, 7, 8, 9, 10), nrow = 3, byrow = T)
A
     [,1] [,2] [,3]
[1,]    1    2    3
[2,]    4    5    6
B
     [,1] [,2]
[1,]    5    6
[2,]    7    8
[3,]    9   10
A %*% B
     [,1] [,2]
[1,]   46   52
[2,]  109  124
B %*% A
     [,1] [,2] [,3]
[1,]   29   40   51
[2,]   39   54   69
[3,]   49   68   87
  • Example: The inner product of A’s first row vector and B’s first column vector equals AB’s first element.
crossprod(A[1, ], B[, 1])
     [,1]
[1,]   46
(A%*%B)[1, 1]
[1] 46

Mean Centered

X_{(n \times k)}^c = X_{(n \times k)} - I_{(n \times 1)} * \bar{X}_{(1 \times k)} where n is the number of cases (sample size) and k is the number of variables.

X <- cbind(Sect1 = c(89, 71, 31, 74, 81, 54, 2, 21, 36, 17),
           Sect2 = c(26, 32, 18, 51, 82, 15, 19, 98, 95, 24))
XBAR <- colMeans(X)
n <- nrow(X)
one <- matrix(1, nrow = n, ncol = 1)
Xc <- X - one %*% t(XBAR)
Xc
      Sect1 Sect2
 [1,]  41.4   -20
 [2,]  23.4   -14
 [3,] -16.6   -28
 [4,]  26.4     5
 [5,]  33.4    36
 [6,]   6.4   -31
 [7,] -45.6   -27
 [8,] -26.6    52
 [9,] -11.6    49
[10,] -30.6   -22

Self practice

  • Try to mean centered the SATV and SATM of datSAT.
  • Store your centered matrix as variable name X_center
  • Test your centered matrix using round(colMeans(X_center), 3) to see if the means are 0s
X <- dataSAT[, c("SATV", "SATM")]
ONE <- matrix(1, nrow = nrow(X), ncol = 1)
X_bar <- colMeans(X)
X_center <- X - ONE %*% X_bar
round(colMeans(X_center), 3)
SATV SATM
   0    0

Identity Matrix

  • The identity matrix (denoted as \mathbf{I}) is a matrix that, when pre- or post-multiplied by another matrix, results in the original matrix:

    \mathbf{A}\mathbf{I} = \mathbf{A}

    \mathbf{I}\mathbf{A}=\mathbf{A}

  • The identity matrix is a square matrix that has:

    • Diagonal elements = 1

    • Off-diagonal elements = 0

    \mathbf{I}_{(3 \times 3)} = \begin{bmatrix} 1&0&0\\ 0&1&0\\ 0&0&1\\ \end{bmatrix}

  • R: Create an identity matrix using the diag() function.

    diag(nrow = 3)
         [,1] [,2] [,3]
[1,]    1    0    0
[2,]    0    1    0
[3,]    0    0    1
    X = matrix(1:9, nrow = 3, byrow = TRUE)
X
         [,1] [,2] [,3]
[1,]    1    2    3
[2,]    4    5    6
[3,]    7    8    9
    diag(X)
    [1] 1 5 9

Zero and One Vector

  • The zero and one vectors are column vectors of zeros and ones, respectively:

    \mathbf{0}_{(3\times 1)} = \begin{bmatrix}0\\0\\0\end{bmatrix}

    \mathbf{1}_{(3\times 1)} = \begin{bmatrix}1\\1\\1\end{bmatrix}

  • When pre- or post-multiplied with a matrix (\mathbf{A}), the result with the zero vector is:

    \mathbf{A0=0}

    \mathbf{0^TA=0}

  • R:

zero_vec <- matrix(0, nrow = 3, ncol = 1)
crossprod(B, zero_vec)
     [,1]
[1,]    0
[2,]    0
one_vec <- matrix(1, nrow = 3, ncol = 1)
crossprod(B, one_vec) # column-wise sums
     [,1]
[1,]   21
[2,]   24

Matrix “Division”: The Inverse Matrix

  • Division from algebra:

    • First: \frac{a}{b} = b^{-1}a

    • Second: \frac{a}{b}=1

  • “Division” in matrices serves a similar role.

    • For square symmetric matrices, an inverse matrix is a matrix that, when pre- or post-multiplied with another matrix, produces the identity matrix:

      \mathbf{A^{-1}A=I}

      \mathbf{AA^{-1}=I}

  • R: Use solve() to calculate the matrix inverse.

A <- matrix(rlnorm(9), 3, 3, byrow = T)
round(solve(A) %*% A, 3)
     [,1] [,2] [,3]
[1,]    1    0    0
[2,]    0    1    0
[3,]    0    0    1
  • Caution: The calculation is complicated; even computers can struggle. Not all matrices can be inverted:
A <- matrix(2:10, nrow = 3, ncol = 3, byrow = T)
A
solve(A)%*%A
Error in `solve.default()`:
! Lapack routine dgesv: system is exactly singular: U[3,3] = 0
     [,1] [,2] [,3]
[1,]    2    3    4
[2,]    5    6    7
[3,]    8    9   10

Example: The Inverse of the Variance–Covariance Matrix

  • In data analysis, the inverse shows up constantly in statistics.

    • Models that assume some form of (multivariate) normality need an inverse covariance matrix.

  • Using our SAT example:

    • Our data matrix has size (1000\times 2), which is not invertible.

    • However, \mathbf{X^TX} has size (2\times 2)—square and symmetric.

    X = as.matrix(dataSAT[, c("SATV", "SATM")])
crossprod(X, X)
              SATV      SATM
SATV 251797800 251928400
SATM 251928400 254862700
    • The inverse \mathbf{(X^TX)^{-1}} is:
    solve(crossprod(X, X))
                  SATV          SATM
SATV  3.610217e-07 -3.568652e-07
SATM -3.568652e-07  3.566802e-07

Matrix Algebra Operations

  • \mathbf{(A+B)+C=A+(B+C)}

  • \mathbf{A+B=B+A}

  • c(\mathbf{A+B})=c\mathbf{A}+c\mathbf{B}

  • (c+d)\mathbf{A} = c\mathbf{A} + d\mathbf{A}

  • \mathbf{(A+B)^T=A^T+B^T}

  • (cd)\mathbf{A}=c(d\mathbf{A})

  • (c\mathbf{A})^{T}=c\mathbf{A}^T

  • c\mathbf{(AB)} = (c\mathbf{A})\mathbf{B}

  • \mathbf{A(BC) = (AB)C}

  • \mathbf{A(B+C)=AB+AC}
  • \mathbf{(AB)}^T=\mathbf{B}^T\mathbf{A}^T

Advanced Matrix Functions/Operations

  • We end our matrix discussion with some advanced topics.

  • To help us throughout, consider the correlation matrix of our SAT data:

R <- cor(dataSAT[, c("SATV", "SATM")])
R
          SATV      SATM
SATV 1.0000000 0.7752238
SATM 0.7752238 1.0000000

R = \begin{bmatrix}1.00 & 0.78 \\ 0.78 & 1.00\end{bmatrix}

Matrix Trace

  • For a square matrix \mathbf{A} with p rows/columns, the matrix trace is the sum of the diagonal elements:

    tr\mathbf{A} = \sum_{i=1}^{p} a_{ii}

  • In R, we can use tr() in psych package to calculate matrix trace

  • For our data, the trace of the correlation matrix is 2

    • For all correlation matrices, the trace is equal to the number of variables

      psych::tr(R)
      [1] 2

  • The trace is considered as the total variance in multivariate statistics

    • Used as a target to recover when applying statistical models

Model Determinants

  • A square matrix can be characterized by a scalar value called a determinant:

    \text{det}\mathbf{A} =|\mathbf{A}|

  • Manual calculation of the determinant is tedious. In R, we use det() to calculate matrix determinant

    det(R)
    [1] 0.399028

  • The determinant is useful in statistics:

    • Shows up in multivariate statistical distributions

    • Is a measure of “generalized” variance of multiple variables

  • If the determinant is positive, the matrix is called positive definite → the matrix has an inverse

  • If the determinant is zero, the matrix is called singular matrix → the matrix does not have an inverse, cannot used for multivariate analysis.

  • If the determinant is not positive, the matrix is called non-positive definite → the matrix has an inverse but very rare in multivariate analysis, maybe due to the mistakes in your data.

Mini Exercise 2: Inverse Model with Positive Determinant

Calculate the determinant of A and B

Wrap Up

  1. Matrices show up nearly anytime multivariate statistics are used, often in the help/manual pages of the package you intend to use for analysis

  2. You don’t have to do matrix algebra, but please do try to understand the concepts underlying matrices

  3. Your working with multivariate statistics will be better off because of even a small amount of understanding

Multivariate Normal Distribution

Covariance and Correlation in Matrices

  • The covariance matrix \mathbf{S} is found by:

    \mathbf{S}=\frac{1}{N-1} \mathbf{(X-1\cdot\bar x^T)^T(X-1\cdot\bar x^T)}

    X = as.matrix(dataSAT[,c("SATV", "SATM")])
N = nrow(X)
XBAR = matrix(colMeans(X), ncol = 1)
ONES = matrix(1, nrow = nrow(X))
S = 1/(N-1) * t(X - ONES%*% t(XBAR)) %*% (X - ONES%*% t(XBAR))
S
             SATV     SATM
SATV 2479.817 3135.359
SATM 3135.359 6596.303
    cov(X)
             SATV     SATM
SATV 2479.817 3135.359
SATM 3135.359 6596.303

From Covariance to Correlation

  • If we take the SDs (the square root of the diagonal of the covariance matrix) and put them into diagonal matrix \mathbf{D}, the correlation matrix is found by:

\mathbf{R = D^{-1}SD^{-1}} \mathbf{S = DRD}

S ## variance-covariance matrix
         SATV     SATM
SATV 2479.817 3135.359
SATM 3135.359 6596.303
D = sqrt(diag(diag(S))) ## Standard deviations for two variables
D
         [,1]     [,2]
[1,] 49.79777  0.00000
[2,]  0.00000 81.21763
R = solve(D) %*% S %*% solve(D)
R
          [,1]      [,2]
[1,] 1.0000000 0.7752238
[2,] 0.7752238 1.0000000
cor(X)
          SATV      SATM
SATV 1.0000000 0.7752238
SATM 0.7752238 1.0000000

Generalized Variance

  • The determinant of the covariance matrix is called generalized variance

\text{Generalized Sample Variance} = |\mathbf{S}|

  • It is a measure of spread across all variables

    • Reflecting how much overlapping area (covariance) across variables relative to the total variances occurs in the sample

    • Amount of overlap reduces the generalized sample variance

gsv = det(S)
gsv
[1] 6527152
# If no correlation
S_noCorr = S
S_noCorr[upper.tri(S_noCorr)] = S_noCorr[lower.tri(S_noCorr)] = 0
S_noCorr
         SATV     SATM
SATV 2479.817    0.000
SATM    0.000 6596.303
gsv_noCorr <- det(S_noCorr)
gsv_noCorr
[1] 16357628
gsv / gsv_noCorr
[1] 0.399028
# If correlation = 1
S_PerfCorr = S
S_PerfCorr[upper.tri(S_PerfCorr)] = S_PerfCorr[lower.tri(S_PerfCorr)] = prod(diag(S))
S_PerfCorr
             SATV         SATM
SATV     2479.817 16357628.070
SATM 16357628.070     6596.303
gsv_PefCorr <- det(S_PerfCorr)
gsv_PefCorr
[1] -2.67572e+14

  • The generalized sample variance is:

    • Largest when variables are uncorrelated
    • Zero when variables from a linear dependency

Total Sample Variance

  • The total sample variance is the sum of the variances of each variable in the sample.

    • The sum of the diagonal elements of the sample covariance matrix.
    • The trace of the sample covariance matrix.

\text{Total Sample Variance} = \sum_{v=1}^{V} s^2_{x_i} = \text{tr}\mathbf{S}

Total sample variance for our SAT example:

sum(diag(S))
[1] 9076.121

  • The total sample variance does not take into consideration the covariances among the variables.

    • It will not equal zero if linear dependency exists.

Multivariate Normal Distribution and Mahalanobis Distance

  • The PDF of the multivariate normal distribution is very similar to the univariate normal distribution.

f(\mathbf{x}_p) = \frac{1}{(2\pi)^{\frac{V}2}|\mathbf{\Sigma}|^{\frac12}}\exp[-\frac{\color{tomato}{(x_p^T - \mu)^T \mathbf{\Sigma}^{-1}(x_p^T-\mu)}}{2}]

Where V represents the number of variables and the highlighted term is the Mahalanobis distance.

  • We use MVN(\mathbf{\mu, \Sigma}) to represent a multivariate normal distribution with mean vector \mathbf{\mu} and covariance matrix \mathbf{\Sigma}.

  • Similar to the squared error in the univariate case, we can calculate the squared Mahalanobis distance for each observed individual in the context of a multivariate distribution.

d^2(x_p) = (x_p^T - \mu)^T \Sigma^{-1}(x_p^T-\mu)

  • In R, we can use mahalanobis with a data vector (x), mean vector (center), and covariance matrix (cov) to calculate the squared Mahalanobis distance for one individual.
x_p <- X[1, ]
x_p
SATV SATM
 520  580
mahalanobis(x = x_p, center = XBAR, cov = S)
[1] 1.346228
mahalanobis(x = X[2, ], center = XBAR, cov = S)
[1] 0.4211176
mahalanobis(x = X[3, ], center = XBAR, cov = S)
[1] 0.6512687
# Alternatively,
t(x_p - XBAR) %*% solve(S) %*% (x_p - XBAR)
         [,1]
[1,] 1.346228
mh_dist_all <- apply(X, 1, \(x) mahalanobis(x, center = XBAR, cov = S))
plot(density(mh_dist_all))

Multivariate Normal Properties

  • The multivariate normal distribution has useful properties that appear in statistical methods:

  • If \mathbf{X} is distributed multivariate normally:

    1. Linear combinations of \mathbf{X} are normally distributed
    2. All subsets of \mathbf{X} are multivariate normally distributed
    3. A zero covariance between a pair of variables of \mathbf{X} implies that the variables are independent
    4. Conditional distributions of \mathbf{X} are multivariate normal

How to Use the Multivariate Normal Distribution in R

Similar to other distribution functions, use dmvnorm to get the density given the observations and the parameters (mean vector and covariance matrix). rmvnorm generates multiple samples from the distribution.

library(mvtnorm)
(mu <- colMeans(dataSAT[, 2:3]))
  SATV   SATM
499.32 498.27
S
         SATV     SATM
SATV 2479.817 3135.359
SATM 3135.359 6596.303
dmvnorm(X[1, ], mean = mu, sigma = S)
[1] 3.177814e-05
dmvnorm(X[2, ], mean = mu, sigma = S)
[1] 5.046773e-05
## Total Log Likelihood
LL <- sum(log(apply(X, 1, \(x) dmvnorm(x, mean = mu, sigma = S))))
LL
[1] -10682.62
## Generate samples from MVN
rmvnorm(20, mean = mu, sigma = S) |> show_table()
SATV SATM
563.5026 631.6245
499.0337 507.6084
445.5664 460.9351
502.6223 580.6672
449.6527 352.2973
450.7611 469.3925
491.3205 481.4378
567.1666 636.8755
443.9740 419.2099
504.9611 513.8619
443.7179 426.9764
441.1004 370.3551
439.0337 448.5081
545.1352 567.4855
563.2110 567.7634
553.4351 616.0691
518.5158 562.1784
428.6370 414.4879
563.2217 608.2384
500.1564 432.5149

Mini Exercise 3: Self Practice

Using a small practice matrix and the tools from this lecture, complete the following steps. Fill in the underlined placeholders where indicated.

  1. Build the data matrix X with columns SATV and SATM (as a numeric matrix). Compute:
  • The sample mean vector XBAR and covariance matrix S.
  • The correlation matrix R and its trace tr(R).
  1. Verify basic matrix operations:
  • Center X to Xc = X - ____ %*% t(____) using a ones vector and the mean vector.
  • Check that colMeans(Xc) is (approximately) ____.
  • Confirm t(Xc) %*% Xc / (____ - 1) equals ____.
  1. Work with products and inverses:
  • Compute XtX = crossprod(____) and its inverse XtX_inv = solve(____).
  • Verify round(XtX_inv %*% ____, 6) equals the identity.
  1. Mahalanobis distances and MVN:
  • Compute squared Mahalanobis distances for all rows of X using mahalanobis with center ____ and cov ____.
  • Plot the density of the distances.
  • XBAR is the 2x1 mean vector of SATV and SATM; S is their 2x2 sample covariance matrix; R is the correlation matrix and tr(R) equals the sum of its diagonal (2.0 for perfectly standardized variables; here it depends on scaling).
  • Centering with a ones vector yields colMeans(Xc) approximately zero; and t(Xc) %*% Xc / (n - 1) equals S by definition of sample covariance.
  • XtX_inv %*% XtX equals the identity (up to rounding) when XtX is invertible.
  • mahalanobis(X, XBAR, S) returns squared distances used in multivariate normal contexts; the density plot visualizes their distribution.

Wrapping Up

  1. We are now ready to discuss multivariate models and the art/science of multivariate modeling.

  2. Many of the concepts from univariate models carry over:

    • Maximum likelihood
    • Model building via nested models
    • Concepts involving multivariate distributions

  3. Matrix algebra was necessary to concisely describe our distributions (which will soon be models).

  4. Understanding the multivariate normal distribution is essential, as it is the most commonly used distribution for estimating multivariate models.

  5. Next class, we will return to data analysis—for multivariate observations—using R’s lavaan package for path analysis.

Back to top
